Position & Angle Measurements of Connectors on Cable

Dec 2019, 10 weeks

Cable as a flexible component with twists and slacks
Cable length range is 600 to 900 mm
Small connectors of 20 mm width
Twist and slack detection in mounting
Cycle time of only 5 sec
Manual loading and unloading adding to mounting errors
Visual Inspection of multiple components inside a connector at different focal distances

High resolution pair of cameras splitting the cable image in two halves
Stitching the cable image virtually for measurements purpose

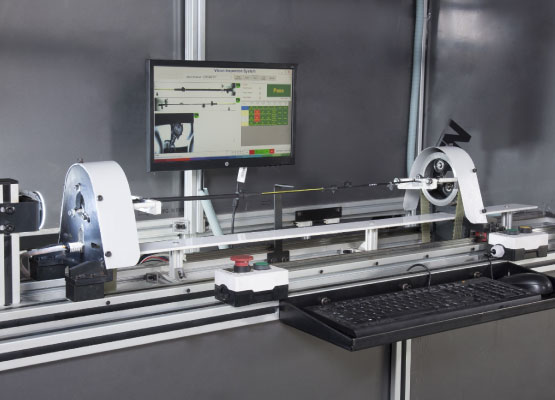

Well-designed fixturing arrangement for cable mounting and holding it straight during rotation of 360 degrees
Well-designed Software solution with rotation algorithm for Angle and Position measurements
Specially designed third camera optics for visual inspection of components inside a connector
Reporting as per requirement
