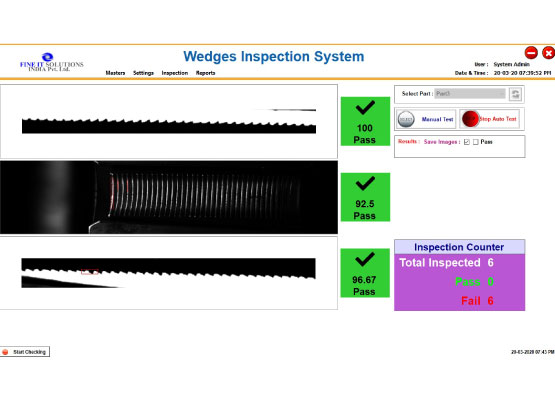

Wedges Inspection System
Customer
Manufacturers of WedgesLocation
NashikApplication
Visual Inspection of WedgesTime/ Duration
Jan 2018, 12 weeks
Challenge
- Semi-circular profile of tapered wedge surface
- Arrangement of all optics in available restricted space with constraints
- Wedge length variation of 30 - 70 mm
- Wide tolerance bands for defects based on its position in component
- Manual loading and unlading of the component in test fixture
- Variation of thread profile based on component variant
Solution
- Fixture design in detail for each variant so that the component position is in focus irrespective of variant
- Reduction of human error in component placement through dedicated component fixturing
- Proper lighting and proper multi-camera optics placement
- High speed Camera optics and suitable illumination
- Reporting as per requirement
