Filter Seal Inspection
Customer
Filter Manufacturer for AutomotiveLocation
PuneApplication
In line inspection on Assembly lineTime/ Duration
Aug 2015, 8 weeks
Challenge
- Online inspection system
- Variation in material shining
- Variation in Loctite bead thickness and position
- Various sample types, sizes
- Component size varying from 80-130 mm diameter
- Single solution required for covering all the components
- Conveyor running at 45 components / min and inspection cycle time just one second per component
Solution
- High speed 3 MP Camera

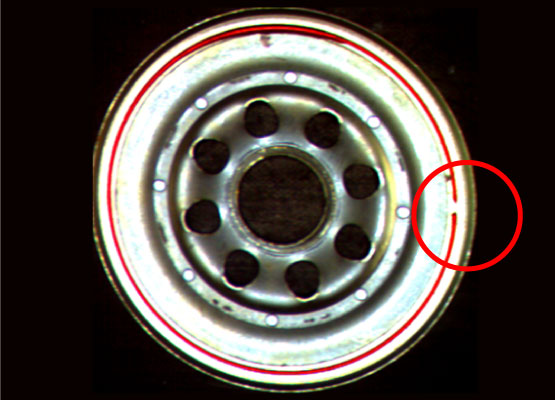

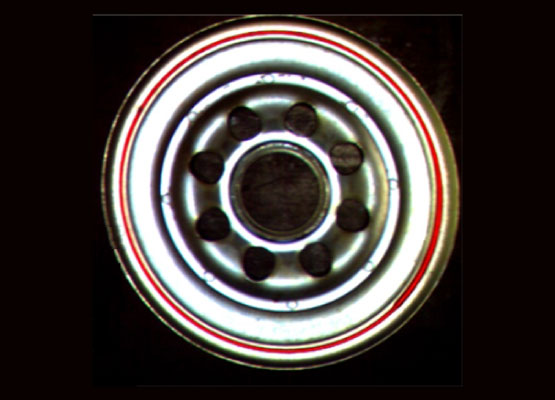

- Detection of presence / absence / disconnection in Loctite bead
- Detection of presence / absence of seal at the center, offset in its position
- Inspection algorithm taking care of position and orientation of the component and also various configuration settings as per component
- Non-Compliance rate is below 1%
