Fastener Inspection
Customer
Fastener Manufacturer for AerospaceLocation
HyderabadApplication
Fastener Inspection System in QCTime/ Duration

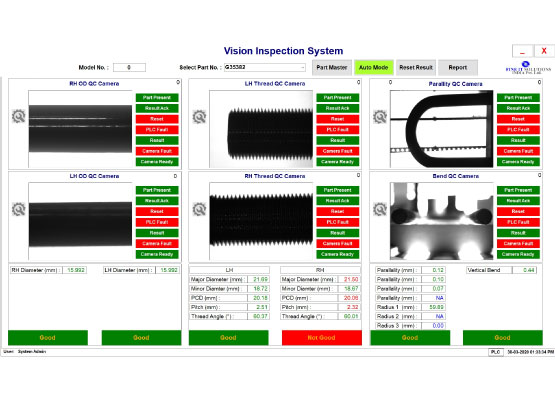

Jan 2014, 8 weeks-Inspection-System-1.jpg)
Challenge
- 300 variants of fasteners used in Aerospace and related industry
- Varying component sizes of Head dia: 2 – 36 mm Component length: 5 – 50 mm
- Measurement of Head dia, Head thickness, Thread dia, Shank length, Angles at selected positions
- Threading based on Metric 6G standard
- Single solution required for covering all the components
Solution
- 3 MP Camera with telecentric lens covering 2 – 36 mm dia
- Inspection taking care of position and orientation of the component
- Facility to define template of new fastener
- Image Processing software to measure dimensions of fasteners as defined in template
- Dimensional tolerances covered up to 0.15 mm
