Gear Teeth Photo Capture System
Customer
Manufacturers of Axles and GearsLocation
PuneApplication
Integrated with existing test rig for gear inspectionTime/ Duration
Apr 2014, 8 weeks
Challenge
- Capture images of Gear – Coast side and Drive Side
- Integrate with number marking system
- Required facility of camera adjustments and gear area selection for the user
- Adapt to existing test rig physically, electrically and optically
- Very noisy environment as far as EMI (Electro-Magnetic Interference) concerned
Solution

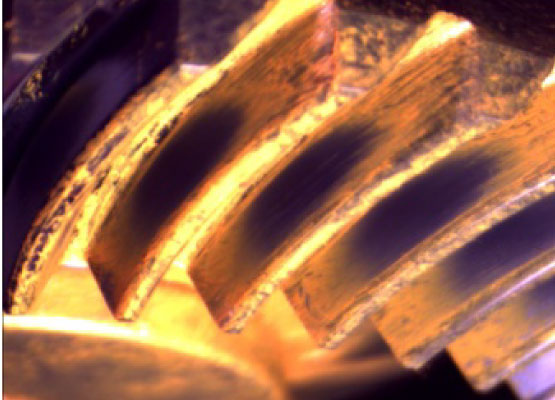

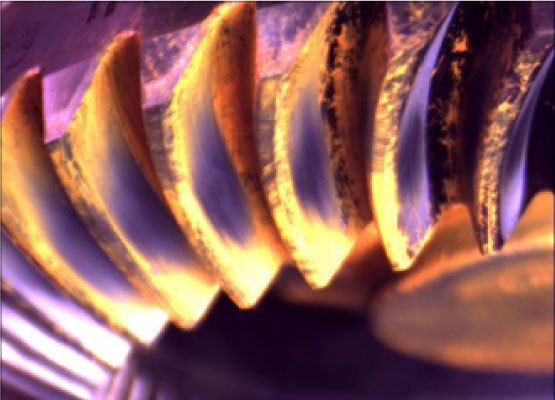

- 2-Camera system configured to capture Gear-Coast side and Drive Side separately
- Facility provided to user to adjust camera position, define region of interest for each camera
- Facility to adjust cameras for different gear sizes as well
- Color adjustments facility to user
- Integrated with number marking machine to send captured images to its reporting system
