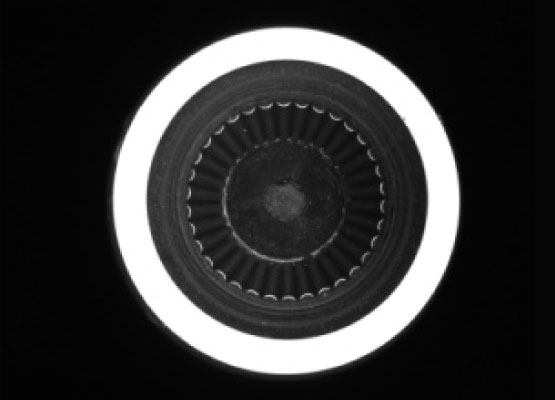

Needle Cup Bearing Inspection system
Customer
Manufacturers of Axles and GearsLocation
PuneApplication
In line inspection on Assembly lineTime/ Duration
Jun 2014, 8 weeks
Challenge
- Inline inspection within cycle time of one assembly process cycle (< 5 sec)
- Absence / Presence of seal, seal cover on top, needles, base washer , needle count
- Seal, Cover on top, Needles at middle and base washer at bottom
- Inspection at 3 different heights from camera
- Receive Test command from PLC, perform test with image capture and communicate back to PLC as Pass / Fail
Solution
- Special Pin-hole Optics for multi-level inspection with specially designed Image processing software solution
- Faster image processing algorithm for various inspection items
- High resolution Camera to get minute details in the bearing
- Integrated with third party PLC system as required by client
- Various error detections related to the bearing cup as well as other possibilities in the system
