Drill Tip Inspection system

Challenge

• Online measurement of predefined dimensions during grinding

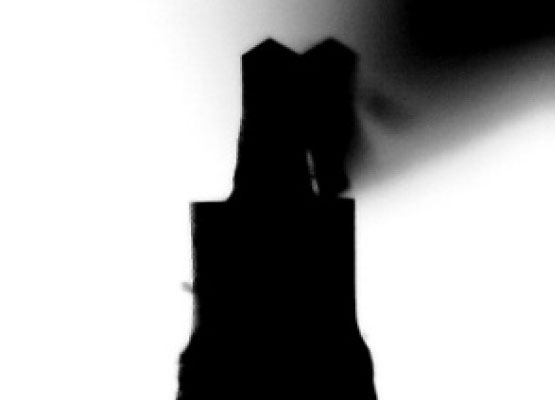

• Grinding wheel in the picture while measurement

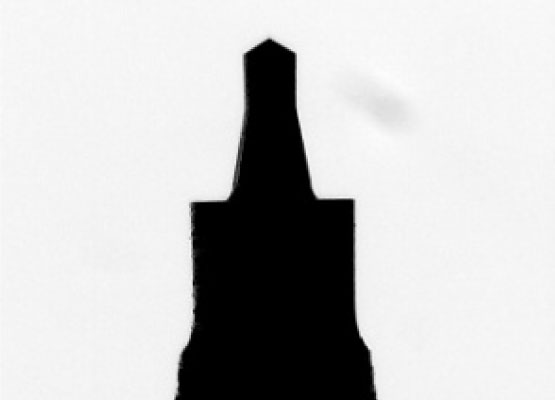

• Tip sizes 0.04 mm at top with tolerance of 0.0005 mm
• Cycle time  < 0.2 sec. as it is online

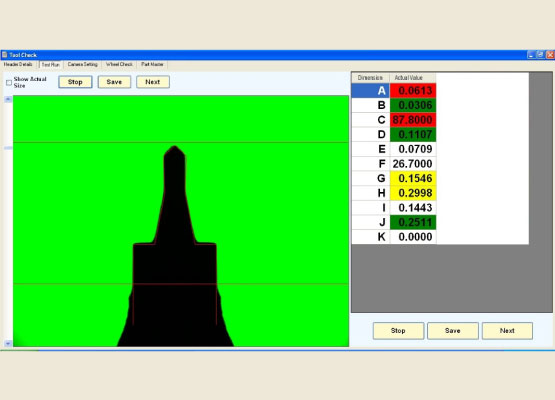

• Visual indications of required dimensions with required profile drawn to scale superimposed live

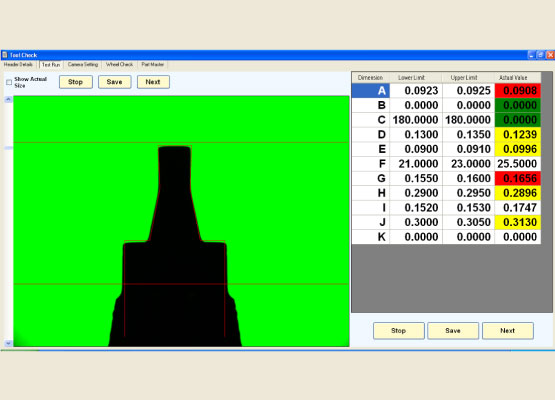

• Length, Angle measurement within tolerances

Solution
