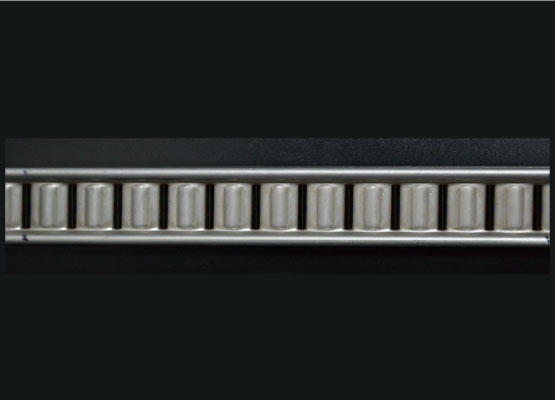

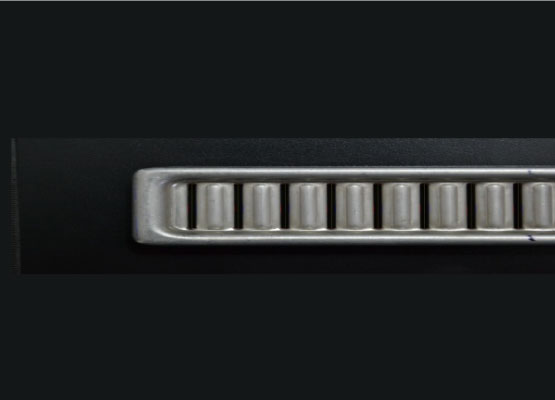

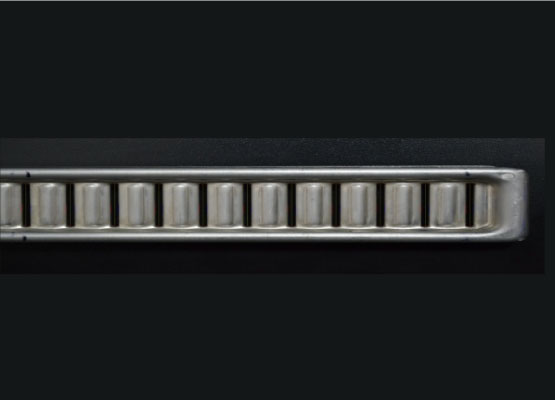

Slot Dimension Measurement

Challenge

• Measurement of various dimensions such as Slot length, Width, Slop Pitch, Total Length
• Stamped and Punched component
• Variation in resting points of the components
• Variation within the single component as well as across the components
• 30 microns tolerance in 400 - 650 mm - across length ranges
• Complete Fixture Design, Development and Building
• End-to-end total solution

Solution
