Multi-Planar Width Measurement
Customer
Large gauging equipment manufacturerLocation
PuneApplication
Testing/ QA in manufacturing lineTime/ Duration
October 2010, 10 weeks
Challenge
- Measure 2 parameters in different planes - shift 4 mm

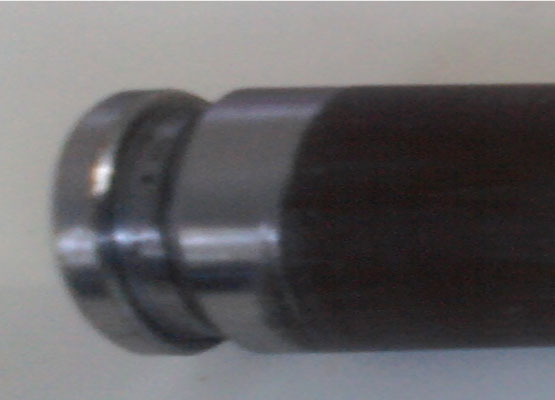

- Groove width and flange width measurement
- Measurement with rotating component at 4 rpm
- Measurement accuracy within 50 microns
- Cycle time 20 sec.
- Inspection on production floor - 3000 components per day
- Application required to be integrated with legacy software
Solution
- Single camera Optics with LED light source and Image processing software
- Image capture at 10 frames per sec
- Planar difference compensation with optics adjustment enabling accurate measurement
- Image processing consisting of multiple filtering such as Grey scale and Krish and edge detection
- Seamless integration with legacy application through library
