Piston Dent Inspection System
Customer
Manufacturers of Grinding WheelsLocation
PuneApplication
Visual Inspection of Grinding WheelsTime/ Duration
Jul 2019, 12 weeks
Challenge
- Detection of variety of defects on top side as well as bottom side of the Grinding Wheels
- Piston diameter variation of 19 to 32 mm and height variation of 45 to 85 mm
- Surface finish variations and color variations
- Different profiles such as grove, chamfer on the OD surface
- Component handling restrictions
- Defect orientation in all directions
- Dusty environment

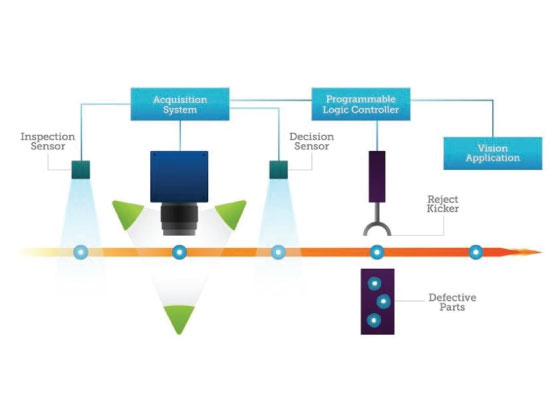

Solution
- High speed Camera optics and suitable illumination
- Component rotation of 360 degrees
- Image capture during rotation and high speed software for dent detection
- Configurable system for parameterization as per surface finish and part dimensions
- Facility to extend the system in terms of component size, number of components and related automation
- Reporting based on date – time and part family
